D100S EL Slant – DRILLING RIG 100 MTON

Wei | D100S EL Slant – DRILLING RIG 100 MTON

Wei | Well Equipment International - Piacenza, Italy | DS85S Slant – DRILLING RIG 85 MTON

Hydraulic Drilling Rig, for geothermal, water and Oil and gas-wells till 3.000 mt.
Skid mounted, completed by Top Drive, Hydraulic Power Tong, Rotating Jib Crane, Hydraulic Elevators.
Slant Rig till 45°.
Separate Automatic Pipe handler and pipe rack, for slant application also.
Designed and manufactured to be transported by helicopter.
Mast lattice type inspired by WEI experience in the Oil and Gas Sector.
Custom made as all WEI Rigs.

SLANT DRILLING RIG 100 MTON Technical Data


Capacity
DP Size Depth
5 ″ 1.900 m - 6.300 ft
4 1/2″ 2.400 m - 7.875 ft
3 1/2″ 3.000 m - 9.840 ft

Mast
Top Drive max stroke Capacity
16 m - 52.5 ft 100.000 daN - 224.800 lbs
Max pull up 100.000 daN - 224.800 lbs
Max pull down 20.000 daN - 44.960 lbs
Power swiwel Max Torque 3.000 daNm - 22.125 ftlb, 0 - 180 RPM

Hyd.Power Tong
Max Break Out Torque 8.000 daNm - 59.000 ftlb
Max opening 520 mm - 20 1/2"
Jib crane 4.000 daN - 8.990 lbs
Slant from 0° to 45°
Rig power unit Diesel 630 HP
Duplex mud pump To be required

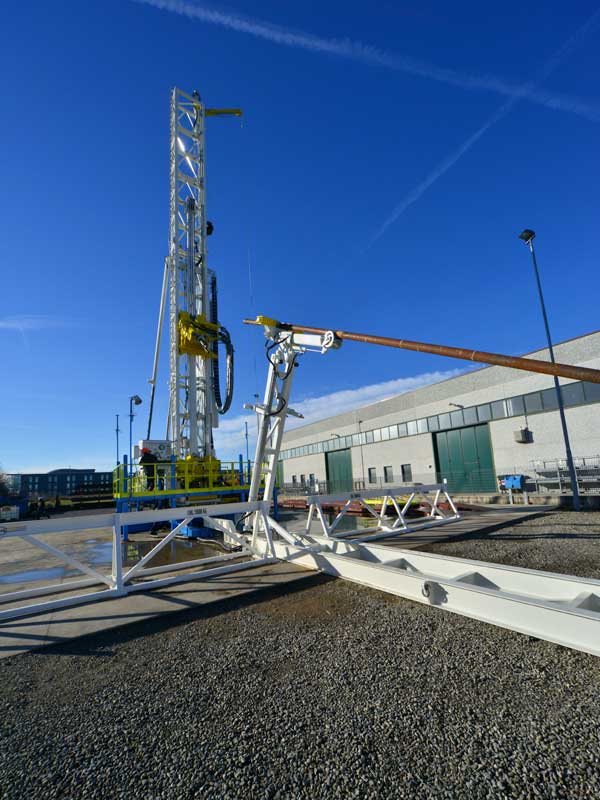

WEI D100S EL Slant Drilling Rig – DRILLING RIG 100 MTON
